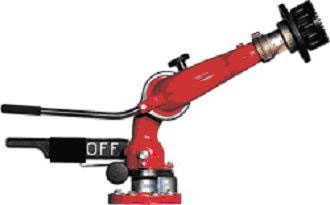

Stationary gun carriage-average performance PROTECTOR-RU, is designed for stationary installation on flammable objects.
The simplicity of the design of the barrel does not maintain and involves relatively low maintenance and operating costs.
A special manual valve for on/off water flow prevents the possibility of water hammer in the initial and final stages of the barrel.
The trunk has a locking mechanism in any position and ensures the flow of either solid or atomized jet.
The casing is made of cast aluminum or bronze (optional).
Main technical features:
| Working pressure, bar | 7 |
| capacity, l/s | 78 |
| Range of feed water and foaming solutions*, m | 70 |
| angle of stroke of carriage in vertical plane | 180° |
| Angle of rotation of carriage in horizontal plane | 360° |
* When applying foam solution in range of jet is reduced by 10%.
