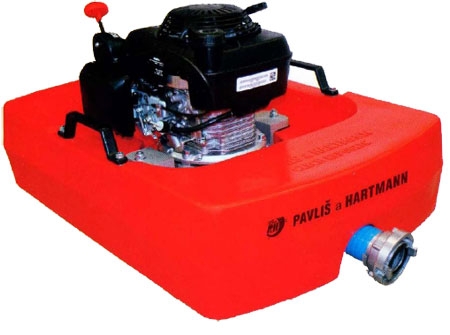

Portable floating pumps "PH 800 and PH-1200"
Set:
- engineHONDAGCV190/GSV190 4-stroke
- pump typecentrifugal aluminum housing
- floatplastic monolith with handles
- impelleriron casting
Application:
Pumps are used by fire brigades to filling water tanks from natural reservoirs. In addition, pumps can be used to pump water from flooded or flooded areas, including buildings and structures. Its application and also in forestry, including fighting forest and peat fires, etc.
the pump Housing is made of aluminum alloy and is bolted to the engine flange and the float. The bottom side of the housing has a plastic cover which prevents ingress of dirt and solid particles whose diameter exceeds 20 mm. Pressure outlet pump equipped with a head coupling of the GM-50. The body of the float is made of polyethylene by centrifugal casting and is a monolithic block. On the inner wall of the applied coating of polyurethane foam 20 mm thick to increase resistance to punctures, which guarantees the buoyancy of the float. This design of float is characterized by stability on the surface of the water. Two handles are used for moving and attaching the rope to prevent the departure of the float.

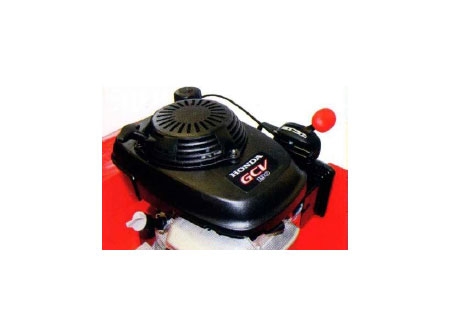

the drive designation GCV has the high quality workmanship of HONDA engines. Engine GSV is characterised by a long service life. Pump design allows operation without damage “dry” and the depth of the water source to 50 mm.
Attention! The pump cannot be used in enclosed spaces where there is danger of carbon monoxide poisoning!
| Settings | PH-800 | PH-1200 |
| Pump | ||
| Maximum flow | 1095 l/min | 1321 l/min |
| Maximum pressure | 16 m | 15 |
| Maximum speed | 3200 rpm | 3200 rpm |
| Pressure port with | HM-50 | HM-50 |
| Honda Engine GCV190 /GSV190 | ||
| Maximum power | 3.8 kW / 3600 rpm | 3.8 kW / 3600 rpm |
| Volume of cylinder | 187 cm 3 | 187 cm 3 |
| Weight | 12.3 kg | 12.3 kg |
| fuel Consumption | 1.3 l/hour | 1.3 l/hour |
| Float | ||
| Dimensions | 820x600x200 mm | 820x600x200 mm |
| Weight float | 8.75 kg | 9.3 kg |
| Complete pump | ||
| curb Weight pump | 29 kg | 29 kg |
| Total weight | 30 kg | 30 kg |
| Dimensions | 900x600x430 mm | 900x600x430 mm |
|
|
|
|
|
|
|
