Centrifuges, normal pressure, diverter ROCNIK NA NA ZASUN and ROCNIK ZASUN'S PLASTICNO CEVJO designed for the formation and direction of a solid or atomized jet to extinguish the fire.

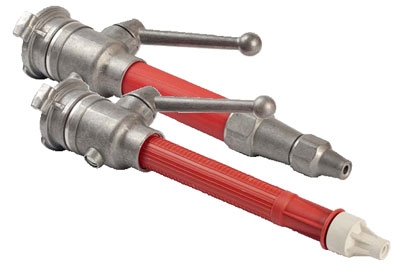

The trunks are equipped with a supply nozzle with a nozzle diameter of 12 mm. Diverter valve is made in the form of a ball, which is embedded turbulator through which the spray is formed. In figures 1 and 2 presents the trunks ROCNIK NA ZASUN with a pipe of aluminum alloy and ROCNIK NA ZASUN'S PLASTICNO CEVJO c pipe plastic, respectively.
Tube made of aluminium alloy outside, has a thermal insulating coating made of colored corrugated plastic.
Core performance and characteristics:
| specifications | index Value |
| Working pressure, MPa | 0,4-0,7 |
| continuous Consumption of jet, l.C-1 | 3,0 |
| Range of continuous jet, m | 30 |
| Flow of spray jet, l.C-1 | 2,0 |
| Range of spray jet, m | 11 |
| Effective range of spray jet, m | 5 |
| Medium intensity irrigation spray jet, l.C-1.m2 | 0,09 |
| angle of torch of spray jet, degree | 37 |
note.Hale purpose when water is given at an operating pressure in front of barrel 0,4 (+0,05) MPa.
Barrel is made in climatic design UHL, category 1.1 according to GOST 15150. Full lifetime of 10 years.
Code for ordering: 1012610
|
|
|
|
|
|
|
