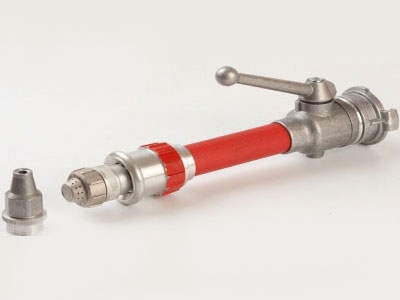

Manual fire barrel "UNIVERZALNI ROCNIK UR-RP"
The trunk the fireman manual, normal pressure, diverter, universal UNIVERZALNI ROCNIK UR-RP is intended for the formation and direction of solid and spray jet, a continuous jet simultaneously with a water screen jet and sprayed simultaneously with a water spray when fighting fire.
The change of jet is a universal control head (bumper) in the front of the barrel.
The kit barrel includes a nozzle with a nozzle diameter of 12 and (or) 21 mm special nozzles with 36 holes with a diameter of 1.0 mm. with the function of water spraying (thermal protection).
Diverter valve with integrated turbulator made in the form of a ball. Tube made of aluminium alloy outside, has a thermal insulating coating made of colored corrugated plastic.
Dimensions of the trunk UNIVERZALNI ROCNIK UR-RP (with a water jet with a diameter of 12 mm) are: length – 430 mm, height – 160 mm Weight – not more than 1.55 kg.
Barrel is made in climatic design UHL, category 1.1 according to GOST 15150. Full service life of 10 years.
Core performance and characteristics:
| specifications | index Value |
| Working pressure, MPa | 0,4-0,7 |
| continuous Consumption of jet, l.C-1(diameter of nozzle 12/21 mm) | 3,2/9,0 |
| Range of continuous jet, m (in case of nozzle diameter 12/21 mm) | 30/32 |
| Flow of spray jet, l.C-1(diameter of nozzle 12/21 mm) | 2,0/6,4 |
| Range of spray jet, m | 11/13 |
| Effective range of spray jet, m | 7/11 |
| Medium intensity irrigation spray jet, l.C-1.m2 | 0,10/0,15 |
| angle of torch of spray jet, degree | 40 |
| water Consumption protective veil l.C-1 | 0, 9 |
| Angle torch, protective veils, degree | 90 |
| diameter of torch protective veil m | 2, 2 |
note: parameters of use given under operating pressure before barrel of 0.4 (+0,05) MPa.

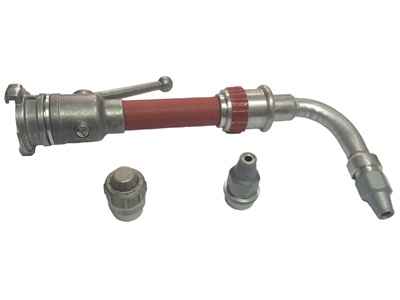

Barrel can be provided with a supply nozzle corner for spilling uncovered structures in case of fire
Code for ordering: 1012671
|
|
|
|
|
|
|
