Closed rubber tanks with drain tap

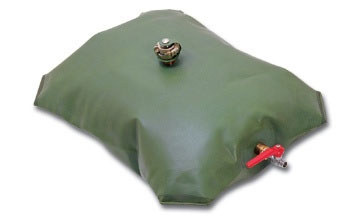

Closed rubber tanks for storage and transportation of liquids can be used as tanks for storage and transportation of various chemicals and liquids including water. Tanks have the shape of pillows and two valves - one at the top for venting and the other at the side for draining and filling of idoti.
Capacity compact and lightweight, have a long service life. Can be used and stored under extreme temperature conditions.
Made of chemically resistant material and provide long-term hermetic storage of hazardous liquids.
Containers are available in different shapes and sizes and can be customized with your choice of options.
specifications:
|
article |
Capacity |
dimensions in blank |
with dimensions |
Weight |
|||
|
long, m |
width, m |
long, m |
width, m |
height, m |
|||
|
59652 |
0.5 |
1,7 |
1,4 |
1,40 |
1,10 |
0,55 |
of 10.66 |
|
59653 |
1,0 |
2,3 |
1,7 |
2,00 |
1,40 |
0,55 |
17,63 |
|
63360 |
2,0 |
2,8 |
2,1 |
2,35 |
1,65 |
0,80 |
25,86 |
|
51095 |
3,0 |
2,9 |
2,6 |
2,40 |
2,10 |
0,90 |
31,98 |
|
74037 |
5,0 |
3,3 |
3,2 |
2,75 |
2,65 |
1,00 |
43,80 |
|
60783 |
10,0 |
4,3 |
4,1 |
3,75 |
3,55 |
1,00 |
70,36 |
|
Property |
Method |
Units |
Value |
| Longitudinal tensile strength |
DIN 53354 |
H/50 mm |
Min 2500 |
| Lateral strength |
DIN 53354 |
H/50 mm |
Min 1900 |
| Longitudinal tensile strength |
DIN 53356 |
H |
90 Minutes |
| Cross breaking strength |
DIN 53354 |
H |
85 Minutes |
| operating temperature range |
DIN 53361 |
Celsius |
-30 to +90. |
|
|
|
|
|
|
|
