The 7th generation universal ultrasonic level indicator, which is ideal for the vast majority of fire service cases(LLI)
During this time, the Portalevel Mini ® has undergone numerous modernization programs to further improve the platform and is the ideal solution for the vast majority of fire cylinder inspection requirements. With an accuracy of + / - 1.5 mm for all major agents, including CO2, FM200 ® , NOVEC 1230 and other similar agents, we recommend the Portalevel Mini ® for any cylinder with an agent weight of up to 400 kg.
P/N: 2290334-Mini
The device has an audible signal from the main unit hanging around the operator's neck, which allows the service technician to have two hands to work. Thanks to the SPA function, the output signal can be increased when working with corroded cylinders and a simple LED indication showing when liquid is detected.
This is the most popular ultrasonic liquid level indicator technology ever produced worldwide. As is the case with all the devices we supply, it comes with a full commitment to customers for the entire life of the device, a 3-year warranty.
Specification
| Overall dimensions | Height: 98 mm (3.86 in) Width: 158mm (6.22 in) Depth: 45.5 mm (1.80 in) Weight: 420 grams (14.82 oz) |
|---|---|
| Accuracy | + / - 1.5 mm (1/8 inch) |
| Check extinguishing agents | CO2, H20, FM 200 ™, NOVEC ™ 1230, old halons such as 1301 and 1211, FE-13 ™, FE-25 ™, FE-36 ™ HFC-225 and 2271 |
|
Sensor
|
Dryness sensor TX / RX head with a diameter of 14 mm contained inside a magnetized sensor-applicator Connected by BNC connectors to a 1 m long coaxial cable. |
| Power supply | 4 x 1.5 V AA batteries (10 hours battery life) |
|
Display
|
Digital LCD Display with LED bar graph |
| Operating Temperature Relative Humidity |
-20 & deg; C to + 70 & deg; C (68 & deg; F to 158 & deg; F) -5% - 95% |
| Warranty | Main unit: 3 years warranty Sensor: 1 year warranty |
| Certificates | Approved Classification society-RINA CE UKAS ISO 9001: 2015 |

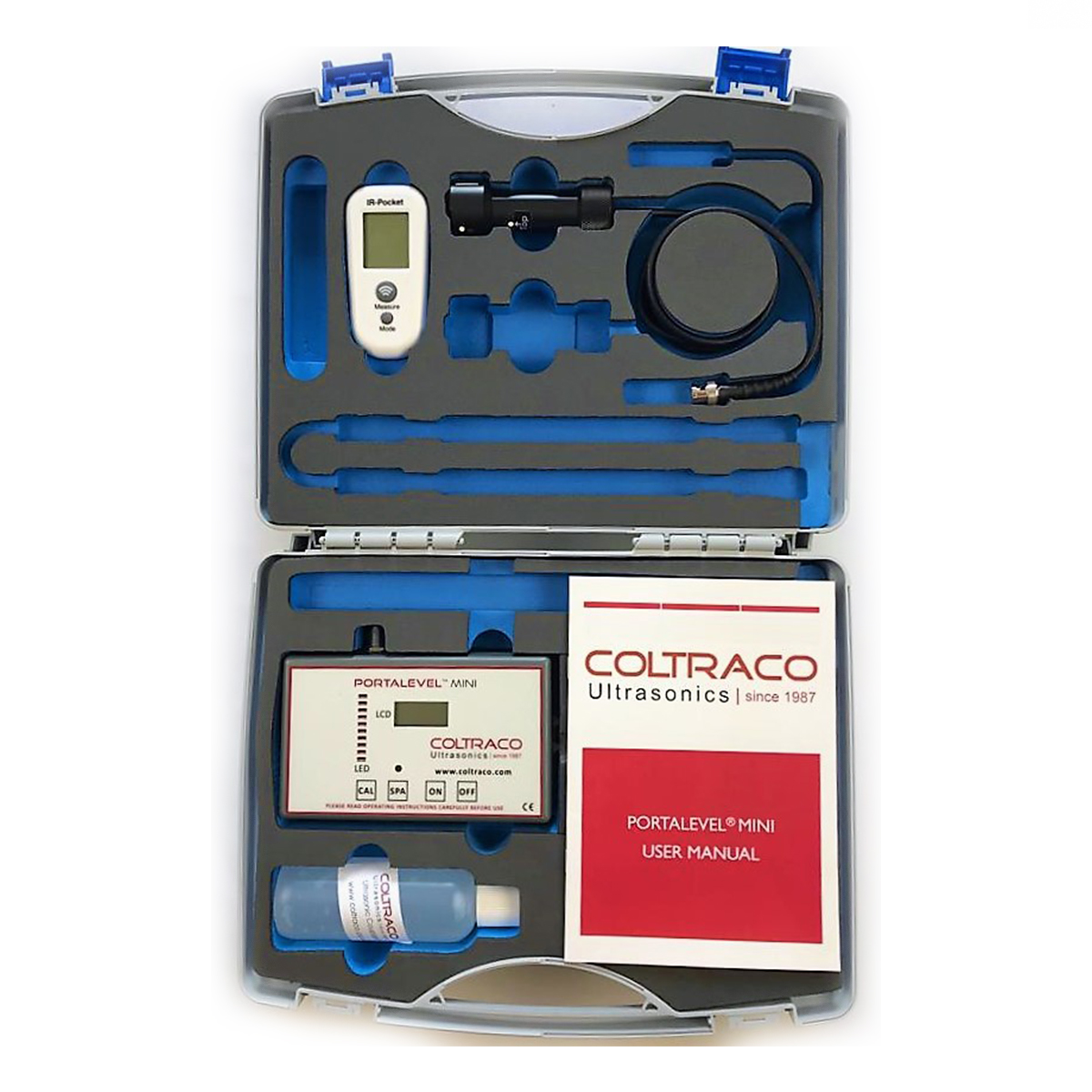

| Delivery Contents | 1 Portalevel Original Block 1 Portatherm 1 dry sensor Ultrasonic gel 1 sturdy carrying bag Calibration certificate User Manual |
