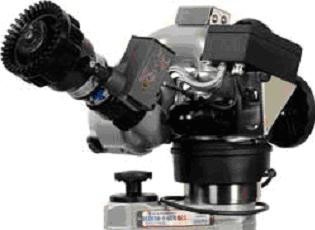

Fire gun carriage with remote control HURRICANE RC-RU is designed for stationary installation on flammable objects. The barrel is easy to operate and require minimal maintenance.
The barrel has great performance
Differs from the stationary model of the HURRICANE, which is operated manually, the motor (powered from 12 or 24 V). There is also a built-in control panel which can rotate the carriage 225° left or right from the center position in the horizontal plane (rotation 360° is not possible due to winding of cable) to 90° below horizontal and 90° above, and adjust spray from spray to solid. The casing is made of cast aluminum or bronze (to order), has a drain valve.
A regular complete barrel comes with a controlled supply nozzle MASTERSTREAM 1250 ER.
Main technical features:
Working pressure, bar
Range of feed water and foaming solutions*, m
angle of stroke of carriage in vertical plane
Angle of rotation of carriage in horizontal plane
+225 and -225°
* When applying foam solution in range of jet is reduced by 10%.
