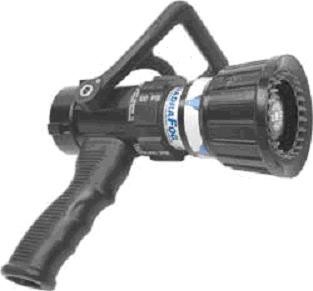

Manual fire barrel with adjustable flow QUADRAFOG-RU is designed to obtain continuous and dispersed jets.
With a relatively small dimensions has a wide range of technical capabilities. Includes our handmade trunks SRK-50, RSK-50, RSP-50, RSP-70 and as RSKZ-70 at the same time as the values of costs and technical characteristics of QUADRAPOLE actually unite these trunks in one, but exceeds them.
Provides effective protection from fire thermal radiation by creating a protective water screen 120°.
Has the function of flushing the trunk with pollution, without disconnecting the hose lines.
Additionally equipped with a quick-release universal foam nozzle to obtain a fire-extinguishing foam low and medium expansion.
Depending on performance, the working pressure of the barrel is available in three versions.
Main technical features:
| Performance | QUADRAFOG-EN DQS40P | QUADRAFOG-EN FQS125PL | QUADRAFOG-EN FQS125P |
| Working pressure, bar | 7 | 6 | 7 |
| Performance (flow), l/s | [0,3][0,6][1,6][2,5] | [1,8][3,8][6,0][7,8] | [1,8][3,8][6,0][7,8] |
| Range of application of water jets*, m | 32 | 46 | 46 |
| Weight | 1,0 | 1,6 | 1,6 |
| Bag entrance | G-50 | G-50 | G-50 |
* When applying fire extinguishing foam of range of jet is reduced by 10%.
